ST2558B-F01-P conductive rubber sheet square resistance flat head pin four-point probe
ST2558B-F01-P conductive rubber sheet square resistance flat head pin four-point probe

Category： ST2558B-F01-P Flat Needle Four-point Probe
AddDate： 2022/12/2 15:34:53
Hits： 4310

Detail

I. Overview of functional and structural features

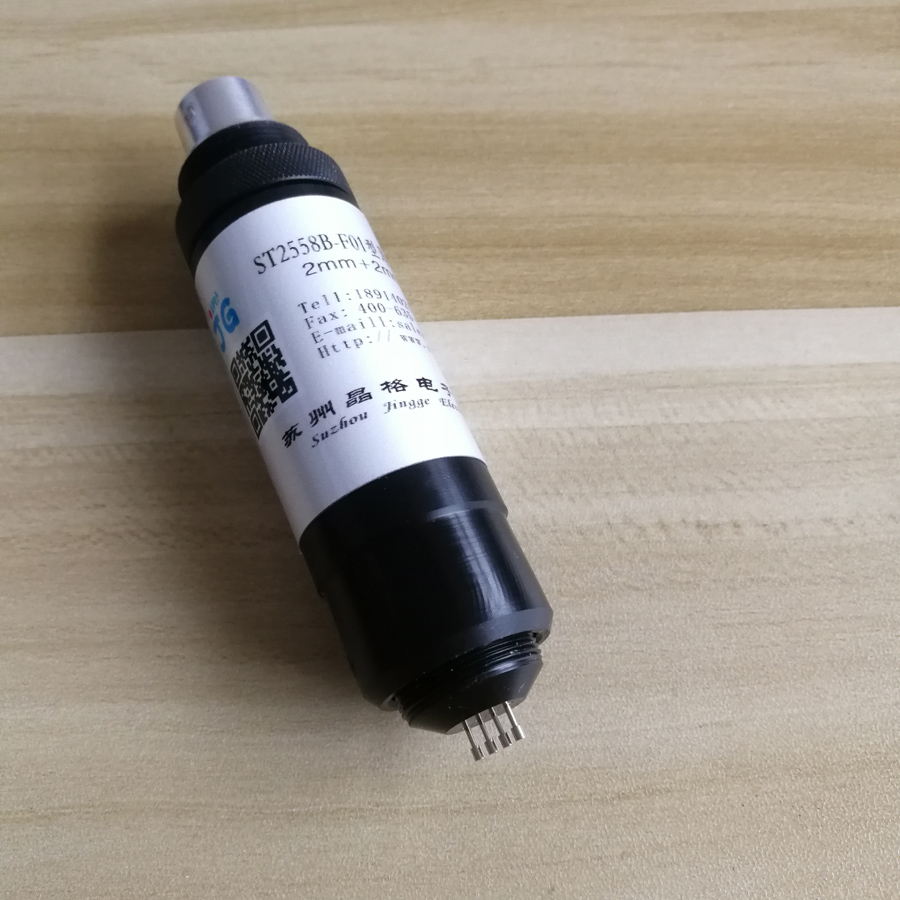

ST2558B-F01-P Flat head four-point probe

Basic functions: ST2558B-F01-P flat head four-point probe, linear 2+2+2 mm micro needle pitch, with flat head gold plated phosphor copper alloy probe, equipped with four probe instrument and test bench to test the resistivity/square resistance of conductive rubber sheet, conductive plastic sheet, etc.

Basic composition: the complete set of probes consists of removable probes, probe bases, hand-held jackets, test bench connecting units, instrument connecting cables and other components.

Matching and compatibility: This probe is compatible with all four probe instruments and four probe test benches of our company. The main models in the table below are compatible with our test benches and four probe instruments of most other manufacturers.

List of models and names of applicable products of ST2558B-F01-P flat head four-point probe

Test bench model name		Model and name of four probe instrument
Model	Name	Model	Name
SZT-C	Fast constant pressure four probe test bench	ST2258C	Multi functional digital four probe tester
		ST2253	Digital four probe tester
		ST2263	Double electric measuring digital four probe tester
		M-3	Hand held four probe tester
		……	Model of other manufacturers
		2400;2450;6500	Keithley
		RST-4/8	Digital four probe tester
		SDY-4	Digital four probe tester

II. Main Technical Parameters and Description

1. It can measure sheet, block or bar. Minimum sample size 3mm × 10mm, the maximum plane size and thickness are determined by the equipped test bench, and the hand-held probe mode is not limited.

2.1 Probe spacing: straight line, 2+2+2 mm micro needle spacing.

2.2 Mechanical displacement rate of probe: ± 0.5%.

2.3 Probe: gold plated phosphor copper alloy, Φ 1.28mm。

2.4 Pressure: 0~500g adjustable, and the rated pressure is about 400g.

3. The probe can be quickly disassembled and replaced, which is convenient for the production line to use frequently.

III. Usage

Please refer to the usage of each supporting test bench.
